Analyzing and Reporting

Beyond letting you code data, QualCoder provides powerful tools to analyze your results and create reports and graphs. If you want to report an issue in QualCoder or request an additional feature, please open a New issue on the GitHub repository for the project.

We’ll dive into five of the most frequently used tools, but bear in mind that there is much more to explore:

• Code retrieval: A list of all coded text, or a subset of it based on the chosen filters.
• Code co-occurrence: A matrix counting how many times two codes appear in the same text.
• Charts: Word clouds, bar charts counting code frequency, pie charts showing relative frequency, and code heatmaps by file or case.
• File and code summaries: For a given file or code, show how many characters were coded and what the most frequent words in the data are, with the option to remove common words (stopwords).
• Database queries: Advanced users can run SQL queries on the project database. Back up first, as queries can change data.

Other tools:

• Code comparison and frequencies, in case you have multiple coders and want to run an intercoder reliability analysis.
• Journals, a place in your project to keep notes on your ideas.

NoteBefore we start: Merging projects

Since we haven’t coded much text yet, we will merge another project into the one we are working on now. This will enrich the demonstration of the different analytical and reporting tools, as we will have more data show up in the outputs and plots.

Beyond this workshop, merging projects is useful when multiple coders analyze the same files and you want to bring their work together.

To merge the project we have prepared for you, follow these steps:

1. Make sure the qualcoder-workshop-project folder you downloaded for the workshop contains a folder called coded-project.qda.
2. In QualCoder, go to Help > Special functions.
3. In the pop-up window, click the button inside the Merge project into this project section.
4. Click the Run button.

Code retrieval

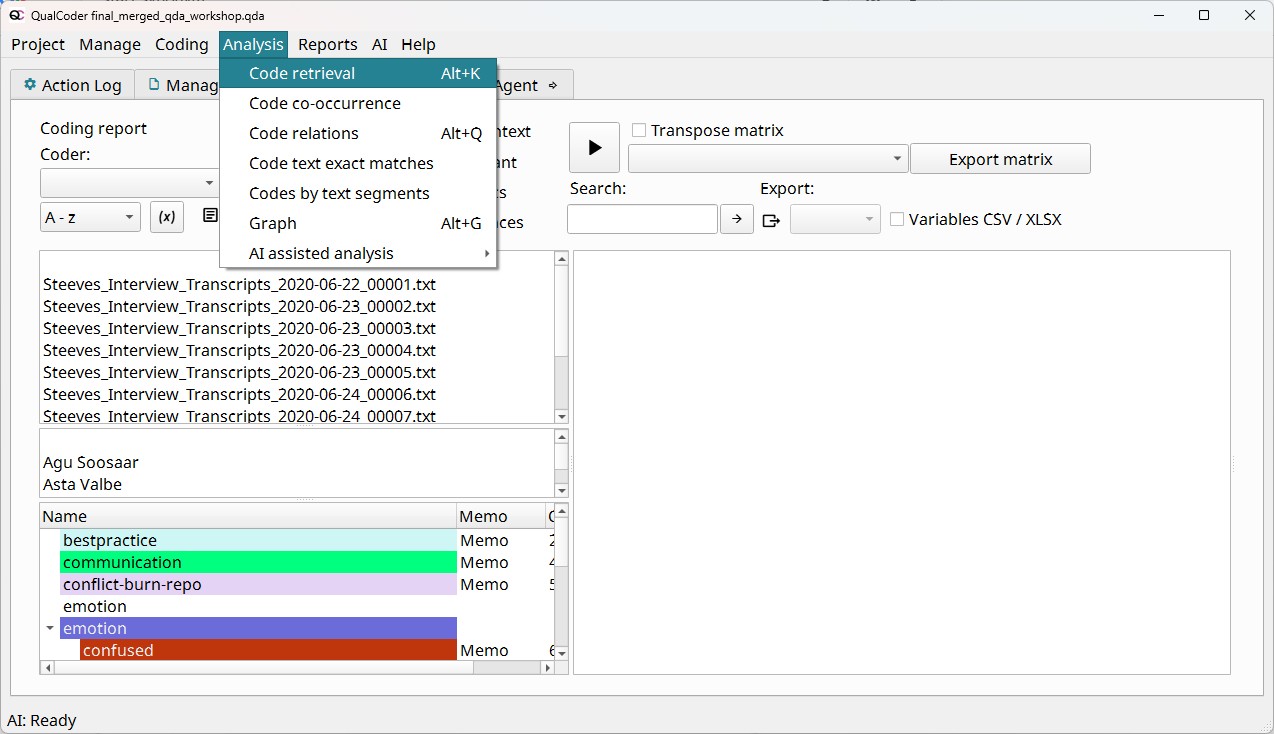

To see all the coded excerpts together and analyze your data as a whole, start with the Code retrieval tool (sometimes called the coding report), under Analysis > Code retrieval.

Once you are there, the usual workflow is:

1. Choose one or more codes or categories.
2. Select one or more files. If you want to retrieve all coded excerpts for the given code(s), select all the files.
3. Optionally narrow by case, attribute (e.g. only second-year students), or coder.

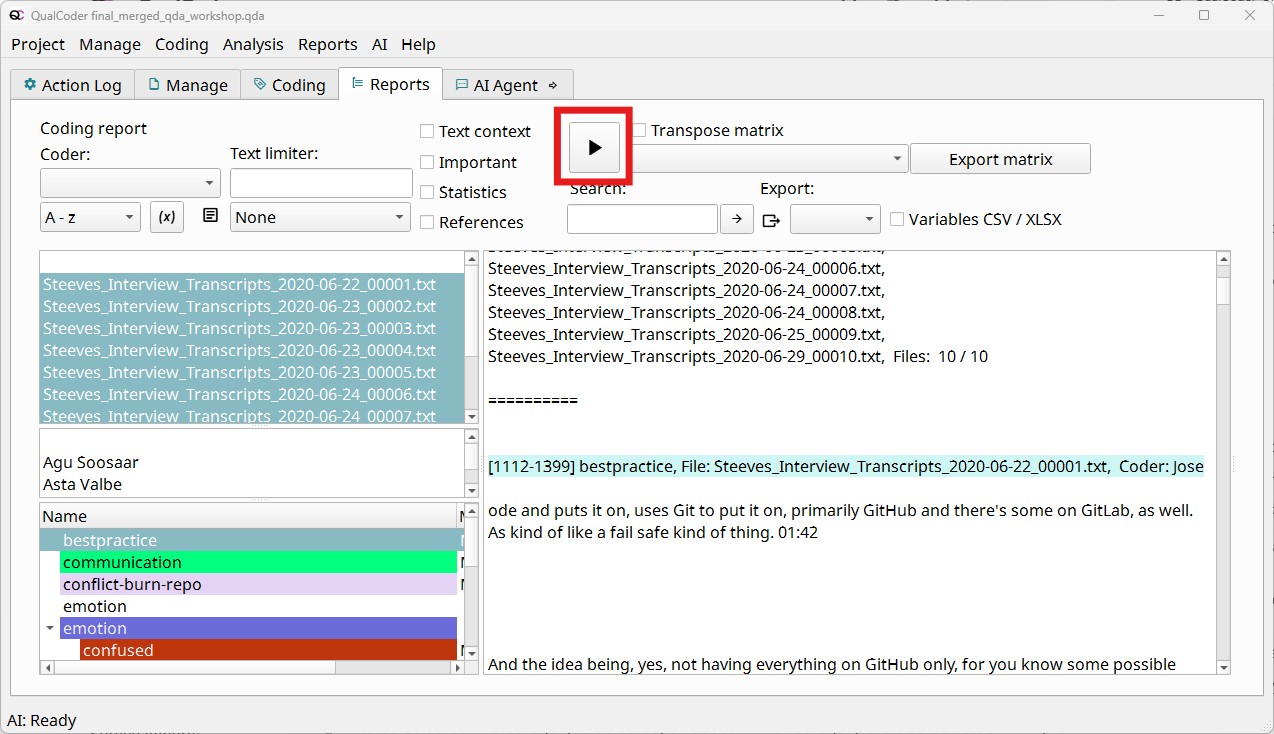

4. Click the Run button (as highlighted in red in the next screenshot) to display the results in the right pane.

TipTip: Selecting multiple files, codes, or cases

Whenever you want to select multiple files, codes, or cases, the fastest way to select a range is to use the Shift key. For example, if you want to select all the files, you would: 1) Select the first file, File 001; 2) Press and hold the Shift key; 3) Select the last file, File 010; 4) Release the Shift key.

To select files that aren’t next to each other, hold Ctrl (Windows) or Cmd (macOS) while clicking.

You can analyze your data directly on this screen, scrolling up and down in the right pane. You can also export the results to HTML, TXT, CSV, XLSX, or ODT to read them in different software.

Another option is to use the matrix view to place codes (or categories) against files or cases, so you can see who talked about what. This tool is located to the right of the Run button we used to display the results. You can export the resulting matrix to XLSX.

Code co-occurrence

This tool creates a matrix with all your codes along both the vertical and horizontal axes. Each cell shows how many times the two codes overlap or appear right next to each other in your data. You can open it by navigating to Analysis > Code co-occurrence.

Clicking on a cell shows the text where both codes have overlapped.

This is a useful result for your analysis, mainly in two ways:

• If you notice redundant codes (being used for the same phenomenon), you migth decide to merge them.
• If you see two codes that tend to appear close together across multiple cases, this may point to a relationship between the phenomena, which could be an emerging theme.

Charts

You can easily generate and export several types of charts based on aggregated data.

Go to Reports > Charts to see the available charts. For all of them you can filter what data is included in the plot with the options under “Data filters”.

• Pie, sunburst, and treemap charts show the relative frequency (percentage) of times a code is used.
• Bar charts show how many times each code is used; cumulative bar charts break this down per file or case.
• Heatmaps show a visual comparison of the frequency with which a code is used by file or case.
• Attribute charts to describe your cases or files by the attributes you have assigned to them.
• Word clouds to show the most frequent words in your coded data.

TipActivity: Explore the charts available

Choose one of the available charts and try it out. Then, write a brief analysis of what the chart shows.

Once the plot shows up in your web browser, you can download it by clicking the camera icon in the top-right corner.

File and code summaries

In the Reports menu you can find File summary and Code summary.

• File summary shows the following statistics for the file you select in the left pane:
  • Total number of characters, words, and unique words in the file.
  • Top 100 words in the file and their frequency. Use the drop-down menu shown in the screenshot below to filter out common words (also known as stopwords).
  • For each code used in the file: the number of times it was used, the number of coded characters, and a percentage of the total character count.

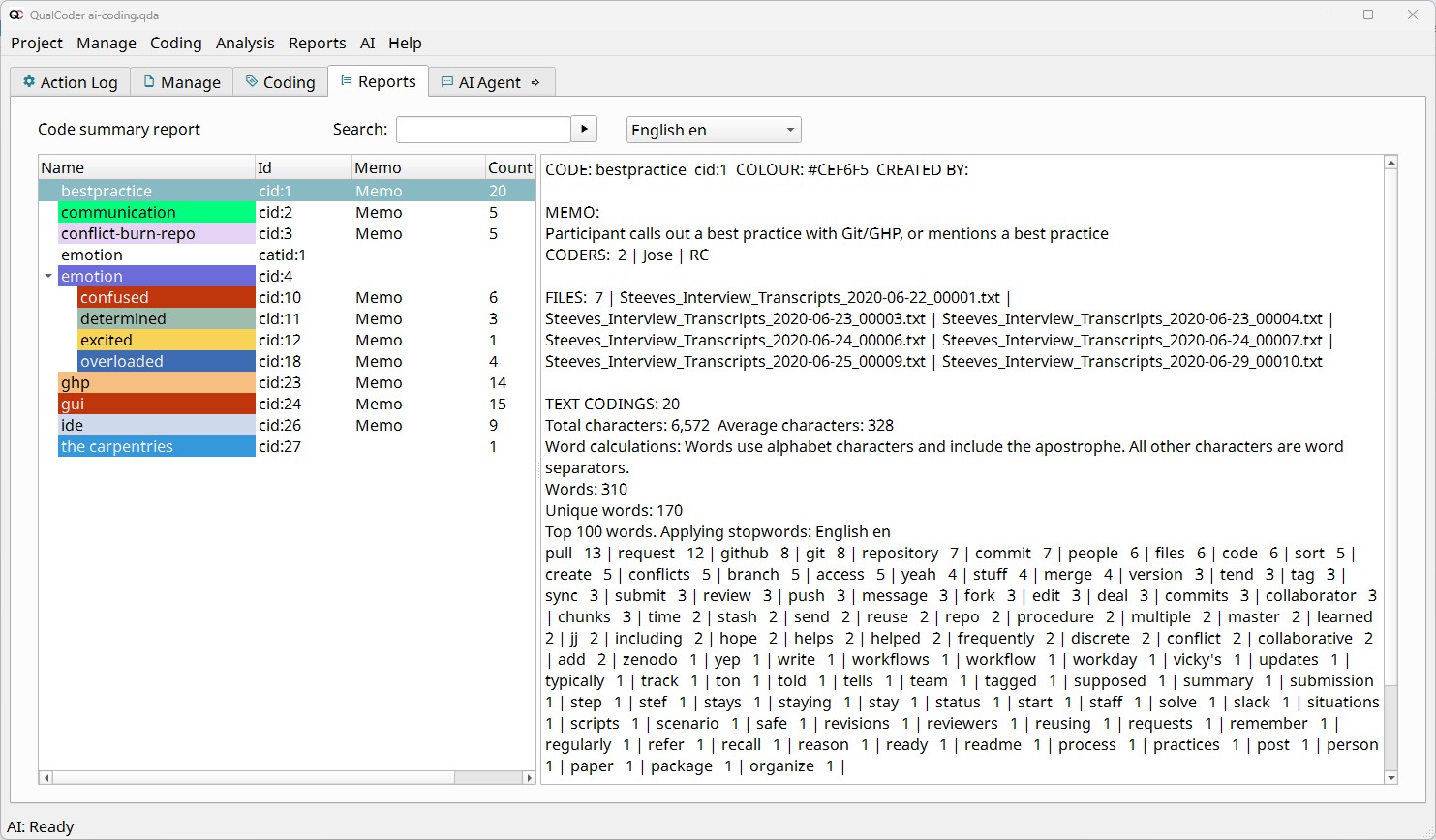

• In contrast, Code summary shows:
  • Coders who used the code and files in which it appears.
  • Number of times the code has been used, along with the number of characters in the excerpts and the average per excerpt.
  • Number of words and unique words in the coded excerpts.
  • Top 100 words in the excerpts and their frequency. The option to remove stopwords is also available here.

Database queries

QualCoder gives you direct access to the database behind your project data in Reports > Database queries. For users who are comfortable with SQL queries, it will be useful to get custom reports from their project.

Remember, back up your project first, as queries can change data.

Let’s see three examples:

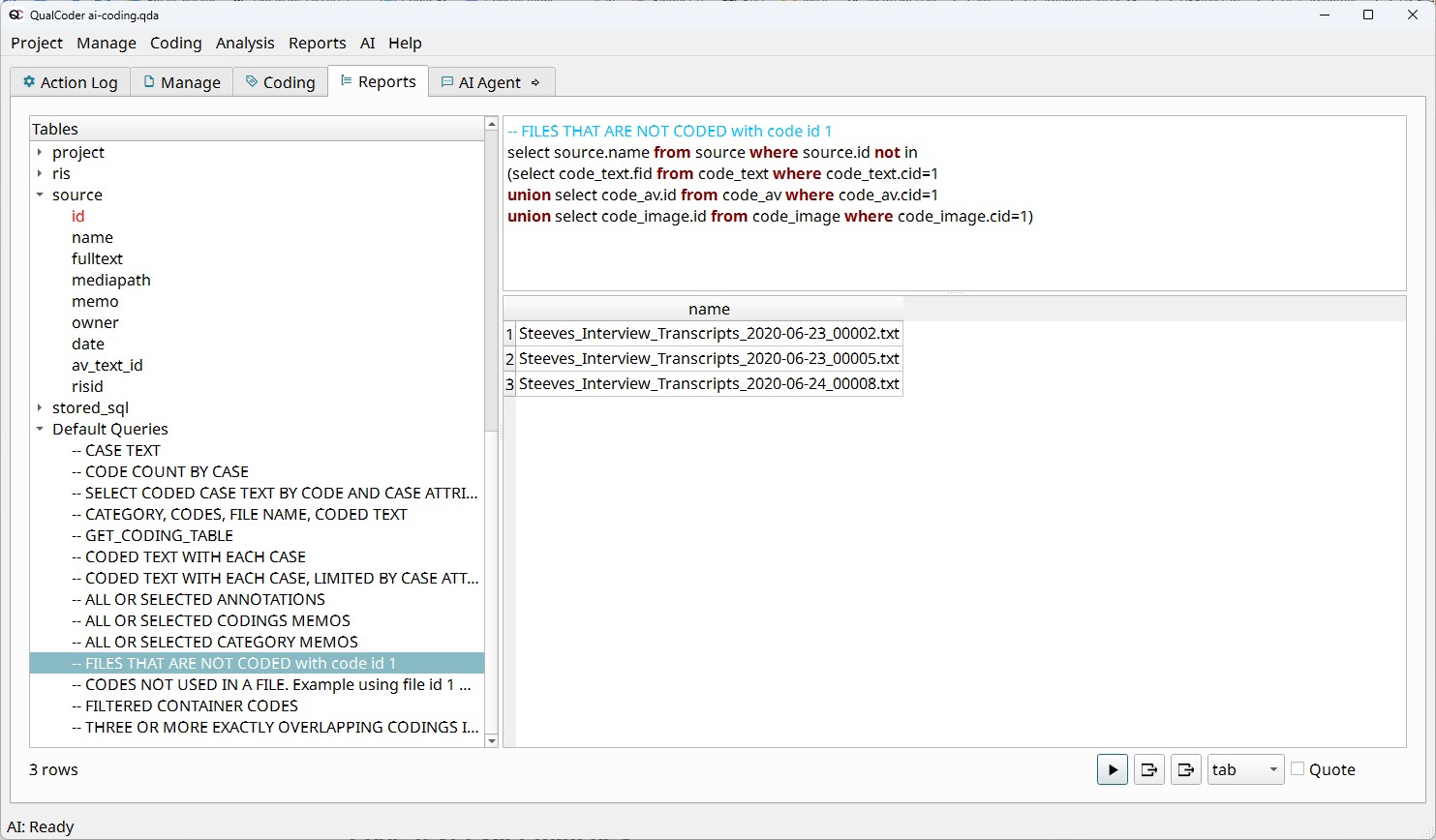

1. Using a default query to list files that don’t include a given code

   • In the left pane, scroll all the way down to “Default Queries”
   • Select “FILES THAT ARE NOT CODED with code id 1”
   • Click the Run button to execute the query
   • The result shows the files that don’t have the code with ID 1, which in the example represents “bestpractice”
     • You can see the query includes not only coded text (code_text), but also audio/video (code_av) and images (code_image)
     • Try modifying the query to use a different code ID, or to show the files that do have the code

2. Write a simple query that all file names where the full text contains the word “rstudio”

   SELECT id, name
   FROM source
   WHERE fulltext LIKE '%rstudio%' OR fulltext LIKE '%r studio%'

   We could read this query as follows:

   • The database has a table of data called source, which contains all your file sources
   • This table has fields id, name, and fulltext, containing the file IDs, names, and full text
   • The WHERE clause keeps only the files whose text contains either ‘rstudio’ or ‘r studio’.

3. A more complex query, involving the code_name and code_text tables, searching for coded text that contains the word “jupyter”

   SELECT source.name, code_name.name, code_text.seltext
   FROM code_text
      JOIN source ON code_text.fid = source.id
      JOIN code_name ON code_text.cid = code_name.cid
   WHERE code_text.seltext LIKE '%jupyter%'

If you want to learn more about databases and SQL, we invite you to read the Software Carpentry or Library Carpentry lessons.

Other tools

Code comparison and code frequencies

If your project involves multiple coders reviewing the same data, you’ll likely want to compare their coding agreement. In other words, you’re interested in intercoder reliability, also known as inter-rater reliability. The tool in Reports > Comparison compares two coders on the same text using percentage agreement and Cohen’s kappa, a measure of agreement that accounts for the agreement expected by chance.

To see the number of coded passages, broken down by code name and coder, use Reports > Code frequencies

If you are interested in learning more about intercoder reliability for your project, reach out to the Library’s Research Data Services department at rds@library.ucsb.edu.

Journals

Journals are free-form notes for recording ideas, decisions, and emerging themes as you code. They support reflexivity: being aware of how your own views shape the analysis.

• The journal window floats, so you can keep it open beside the coding screen.
• Add simple formatting with Markdown: # for headings (up to three levels), *italics*, and **bold**. Use the right-click menu to make web links clickable.
• Search journals, sort them by name or date, filter them, add attributes, and export one journal or all of them as a single file.

You can see and manage all your journals under Manage > Journals.

Note

Memo vs. journal: a memo belongs to one code, file or passage; a journal entry is about the project as a whole.
